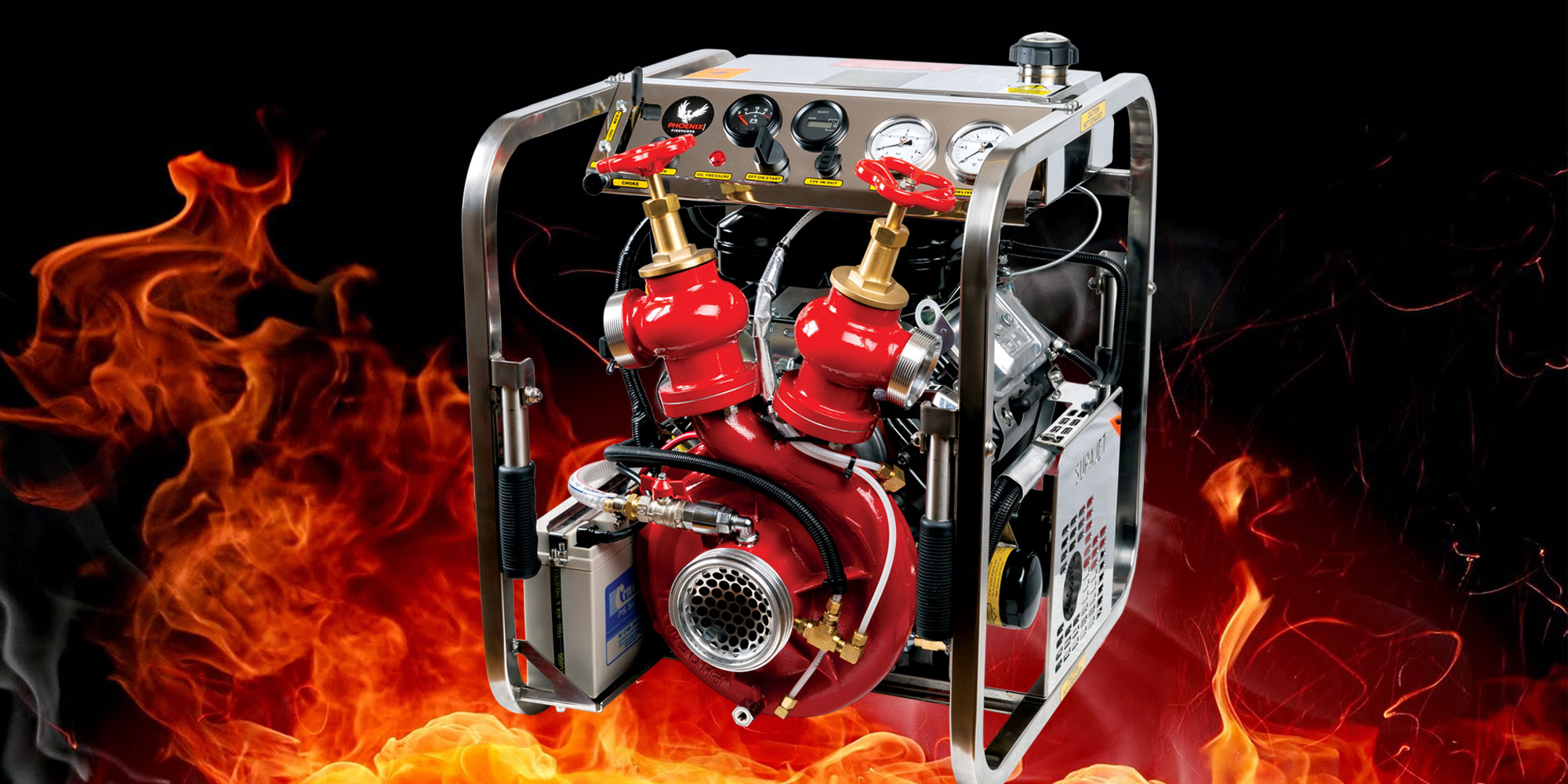

SUPAJET 23 ARV
SUPAJET 23 ARV
A true workhorse packed with features only found on bigger more expensive pumps. The SupaJet 23 ARV is the ultimate all rounder.
Key Features
DRY-RUNNING ROTARY VANE PRIMER
No oily discharge when priming. This fast and efficient RVP will prime 3 metres within 10 seconds and 7metres in less than 30 seconds. Simple push button priming makes the priming cycle effortless.
WATER-COOLED OIL COOLER
Our technologically advanced water-cooled oil cooler lowers internal engine temperatures when the pump is working hard or in very hot climates, ensuring prolonged engine life and service requirements.
CONVENIENT FUEL GAUGE
The ultimate in convenience - no need to remove the fuel cap to check the fuel level as it's conveniently built into the fuel cap itself.
CONTROL PANEL
Beautifully functional the SupaJet 23 ARV SS Control Panel is easy to use with pump and engine information understood with just a glance. Inspired by the demands and performance of today's fire fighters and the territory they tackle, our Gasoline Pumps are engineered for the way you work.
FEATURES AND SPECIFICATIONS
POWERFUL YET COMPACT
The Supajet 23 is an outstanding performer unmatched in its class. Technology the way it should be.
Engine SPECIFICATIONS
Engine Series:
Briggs & Stratton Model 386447
Description:
Vanguard V-Twin air-cooled 4 Cycle Overhead valve
Displacement:
627cc
Type:
4 cycle
Lubrication:
Full Pressure lubrication
Starting:
12 volt electric starter with Manual Recoil
Fuel Tank:
Stainless Steel Integral 8.75 Litre – 1 hours run time
Battery:
12 volt VRLA
Maximum Power:
23HP @ 3600 RPM
Pump SPECIFICATIONS
Type of Pump Transfer:
Combination: Pressure/Volume
Intake:
4” (100mm) BSRT or 3-1/2” (75mm) FMBSP
Discharge:
Twin 2-1/2” (64mm) MBSP Globe Valves
Volute Body:
CC601 Marine Grade Aluminium Heat Treated to T6 condition
Impeller:
CC601 Marine Grade Aluminium
Optional LG2 Bronze available
Wear Rings:
Long Wearing Acetyl, Economical to replace
Shaft Seal:
Spring Loaded Carbon Ceramic
Priming:
Dry Rotary Vane, will prime 3 metres in 10 seconds & 7m in 30 seconds
Frame Type:
Full Wrap Around Stainless Steel
Operating Controls
All the Operating Controls and Instrumentation are located in one area making it easy to read and operate:
FEATURE
- Engine ON/OFF/START switch
- 12volt Inlet/Outlet Socket
- Engine Hours Run Meter
- Voltage Meter
- Oil Pressure Indication
- Throttle Control
- Choke Control
- Push Button Primer
- Pump Pressure Gauge
- Pump Compound Gauge
- Flexible Panel Lighting
DIMENSIONS
Focus on the job, not on your equipment.
Phoenix Firepump is technology you simply won’t need to worry about.
This is the way technology should be.
