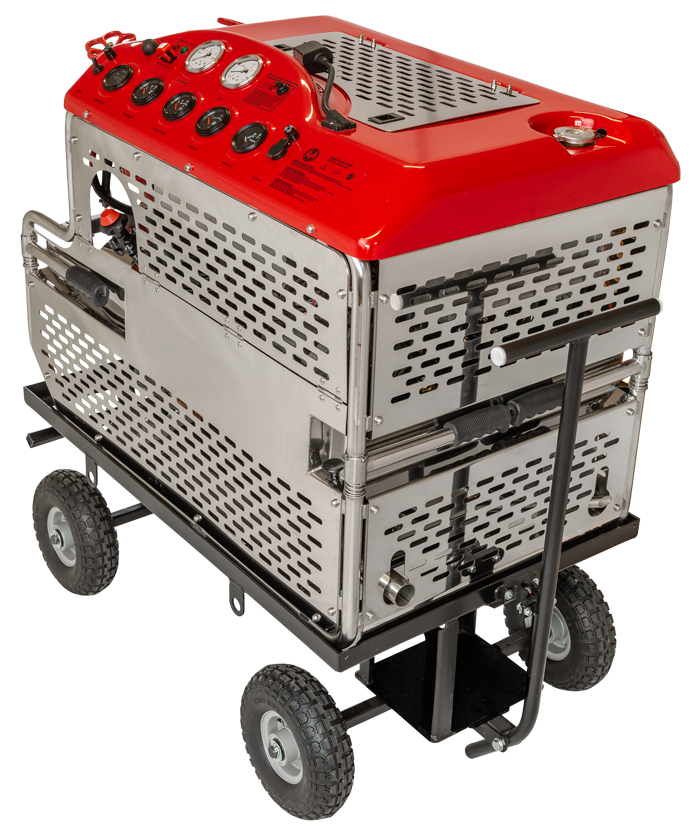

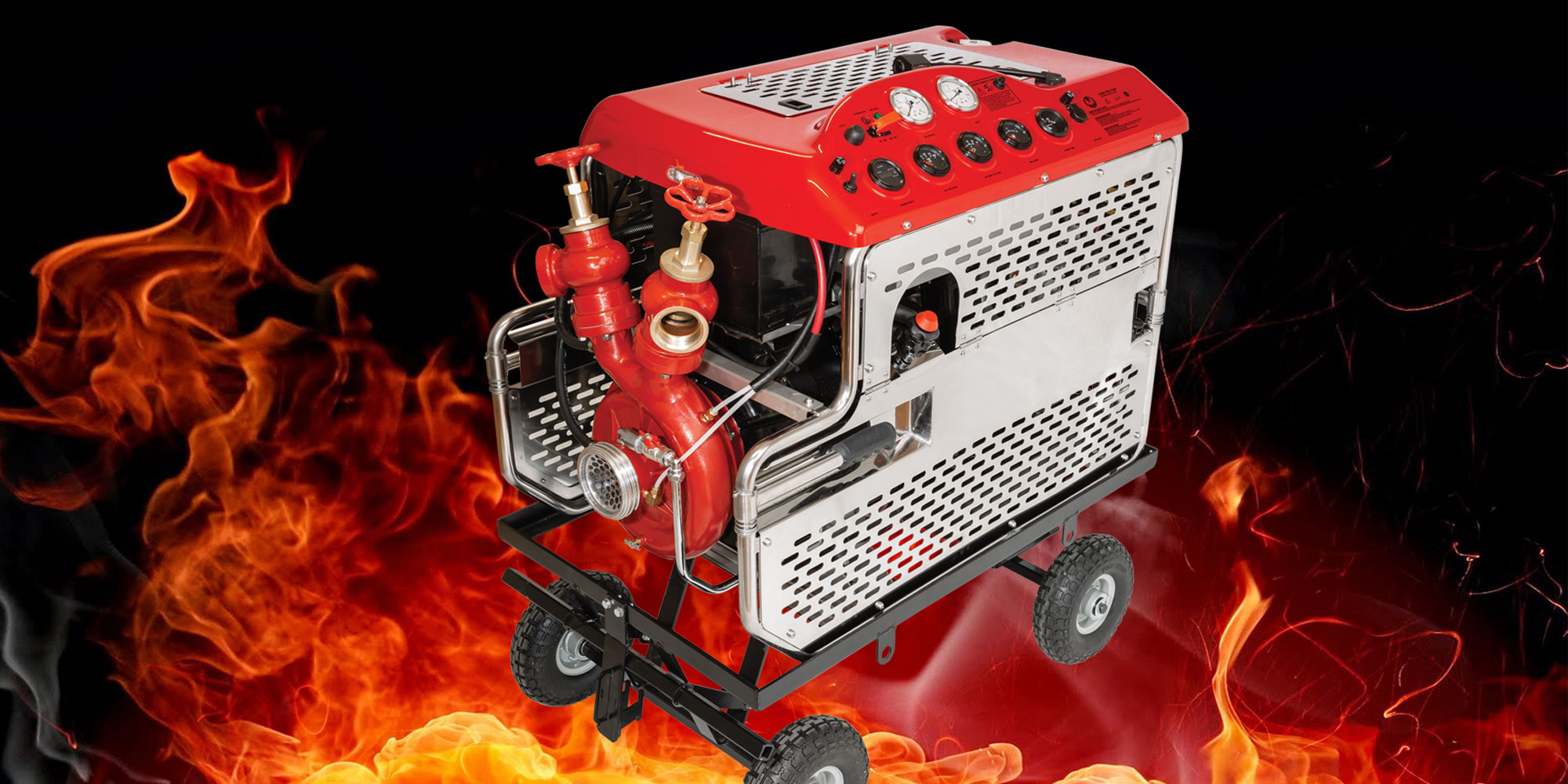

D2000 AE Diesel Pump

D2000 AE Diesel Pump

A large diesel portable fire pump that combines the benefit of high pressure fire fighting performance with large water transfer properties.

Key Features

EASY TO USE CONTROL PANEL

Controls are easy to operate from one location and include Engine On/Start/Off Switch, 12V Inlet/Outlet Socket, Flexible Halogen Night Light, Throttle Control, Fuel Gauge, Oil Pressure Gauge, Hours Run Meter, Volt Meter, Engine Temperature, Discharge Presure Gauge, Compound Gauge, Push Button Start, Over-heat Over-ride Switch.

SIMPLE AND RAPID PRIMING

Fast and effective priming is provided by the simple to operate exhaust eject primer. The pump will prime 3 metres in 20 seconds and to a maximum of 7 metres.

HIGH PERFORMANCE DIESEL ENGINE

Engine Model 4JB1 (4 cylinder inline diesel, OHV, Direct injection, Naturally aspirated, water-cooled through heat exchanger, compression ratio 18.2:1, 57kW @ 3600 RPM, minimum fuel consumption at full load 230g/kWh.

SUPERIOR CORROSION RESISTANT CONSTRUCTION

Stainless steel is used on all fabricated parts. Spring loaded handles allow for multiple carrying positions.

Marine Grade Aluminium Alloy pump end. Optional extras include a detachable wheel set that is manufactured from corrosion resistant material.

FEATURES AND SPECIFICATIONS

Marine Firefighting and Salvage

At 2000 litre/minute at 7 bar means a marine fire service can run four 500 litre/minute hand lines effortlessly. In other salvage relief situations where flow rather than pressure is critical, the D2000 gives exceptional performance delivering over 2500 litres/minute (with flooded suction). When you need big and grunty the D2000 is it.

Engine SPECIFICATIONS

Engine Series:
4JB1 57kW

Description:
4 cylinder inline diesel, OHV, Direct injection, Naturally aspirated, water-cooled through heat exchanger, minimum fuel consumption at full load 230g/kWh

Displacement:
2700cc

Type:
4 cycle

Lubrication:
Full Pressure Lubrication

Starting:
12 volt Electric Starter

Fuel Tank:
Integral 16 Litre – 1 hour run time

Battery:
12 Volt

Maximum Power:
57kW @ 3600 RPM

Pump SPECIFICATIONS

Type of Pump Transfer:
Combination: Pressure/Volume

Intake:
100mm BSRT Female BSP

Discharge:
Twin 64mm Globe Valves

Volute Body and Head:
Marine Grade Aluminium Alloy CC601 heat treated to T6 Hardness

Impeller:
Marine Grade Aluminium Alloy CC601 Fully Enclosed.

Wear Rings:
Long Wearing Acetyl, Economical to replace.

Shaft Seal:
Spring Loaded Mechanical

Priming:
Fast and effective priming is provided by the simple to operate exhaust eject primer. The pump will prime 3 metres in 20 seconds and to a maximum of 7 metres.

Frame Type:
Full Wrap Around Stainless Steel

Operating Controls

All the Operating Controls and Instrumentation are located in one area making it easy to read and operate:

FEATURES

  • Engine ON/OFF Switch
  • Automatic engine pre-heat for cold starts
  • Push Button Start
  • Engine Hours Run Meter
  • Throttle Control
  • Alternator Charge Warning Lamp
  • Pump Pressure Gauge
  • Outlet pressure gauge
  • Pump Compound Gauge
  • Flexible Halogen night light
  • Water Temperature Gauge
  • Battery Voltage Meter
  • Oil Pressure Gauge
  • Fuel Level Gauge

DIMENSIONS

Length
1020mm
Width
605mm
Height
760mm
Dry Weight
321kg
(Including battery)

Focus on the job, not on your equipment.

Phoenix Firepump is technology you simply won’t need to worry about.

This is the way technology should be.
