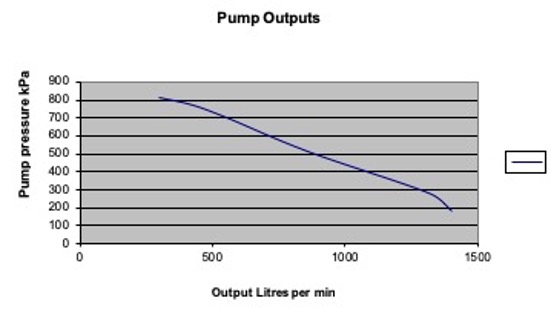

The all new Maxflo 18 is the lightest in its class weighing a mere 64 Kg fully operational. Reliable and simple to operate with a nominal output of 550 L/M @ 7 Bar the Maxflo 18 sets the standard for portable fire fighting pumps.
FEATURES AND SPECIFICATIONS
Briggs & Stratton Model 356447
Vanguard V-Twin, Air-cooled, 4 Cycle, Overhead Valve.
Full Pressure Lubrication with Spin On Oil Filter
Manual Recoil Starter Fuel
Integral 9 Litre – 1.5 hours run time @ nominal output
18HP @ 3600 RPM
Type of Pump Transfer:
Centrifugal, Combination Pressure / Volume
4” (100mm) BSRT or 3-1/2” (75mm) FMBSP
Single 2-1/2” (64mm) MBSP Globe Valve
CC601 Marine Grade Aluminium Heat Treated To T6 Condition
CC601 Marine Grade Aluminium
Optional LG2 Bronze Available
Long Wearing Acetyl, Economical to replace
Spring Loaded Carbon Ceramic
Exhaust Eject will prime 3 metres in 21 seconds and up to 6 metres
Tubular Aluminium, Powder Coated, Multi position spring loaded handles with rubber hand grips
Operating Controls & Instrumentation
- Engine On/OFF Switch
- Throttle Control Choke
- Control Pump Pressure Gauge
- Pump Compound Gauge
- Primer Actuator
