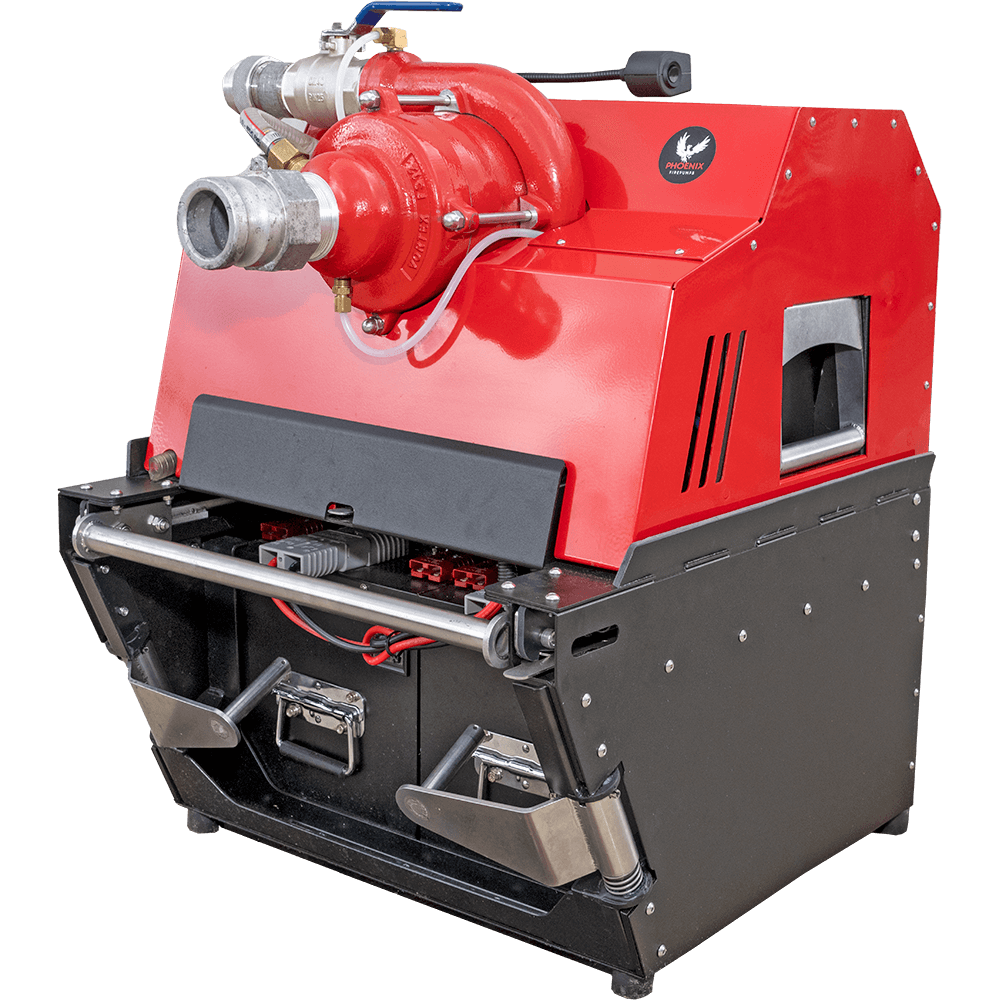

Elettro FS12 High Pressure Pump
Elettro FS12 High Pressure Pump
The world’s first battery electric portable fire pump with outstanding performance, whisper quiet with zero emissions, the Elettro brings a whole new way of fighting fires.
Key Features
EASY TO USE CONTROLS
Simple operation with instant starting, smooth speed control and push button priming, the Elettro is next level in usability.
FAST EFFICIENT PRIMING
The Elettro FS12 uses a rotary vane priming system which is fast and will prime to 7.2 metres. Simply adjust the rotary speed control and push the primer button and the pump will prime in seconds. The primer is dry running with carbon vanes means no oil pollution whilst priming.
ROBUST MULTI-STAGE PUMP
The Elettro is a multi stage high pressure pump. The pump end is cast from CC601 marine grade aluminium heat treated to T6 hardness for the ultimate in strength and durability. The brilliantly simple design with separate stages enables the pump to be dismantled and serviced with ease.
UNIQUE CONSTRUCTION
The Elettro features a unique design that enables the pump unit and power source to separated easily without plugging in or unplugging cables. light weight aluminium chassis construction keeps the overall weight of the system to a minimum.
FEATURES AND SPECIFICATIONS
Simple operation with instant starting, smooth speed control and push button priming, the Elettro is next level in usability.
Electrical Specifications
Electric Motor:
72V BLDC 10 kW water cooled.
Motor Controller:
72V DC 500 amp Vector Controlled Pure Sine Wave output, water cooled.
Speed Control:
Rotary 0-5V
Battery:
2 X Panasonic Lithium Ion 18650PF 20s25p 72v 80Ah. 5.5 kW each (Total output 10kW)
Charging:
230V 20 amp charger
Solar option available
Run Time 300 L/M @ 7 bar:
1 hour
Pump SPECIFICATIONS
Type
Multi stage, High Pressure
Intake:
50mm MBSP
Discharge:
40mm FBSP
Body:
CC601 Marine Grade Aluminium heat treated to T6 Condition.
Shaft Seal:
Carbon Ceramic (balanced)
Priming:
Oilless Rotary Vane, Primes 3 metres in 4 seconds up to 7.2 metres.
Drive:
2:1 Belt Drive
BODY & CONTROL SPECIFICATIONS
Battery & Pump Chassis:
Aluminium with carry handles

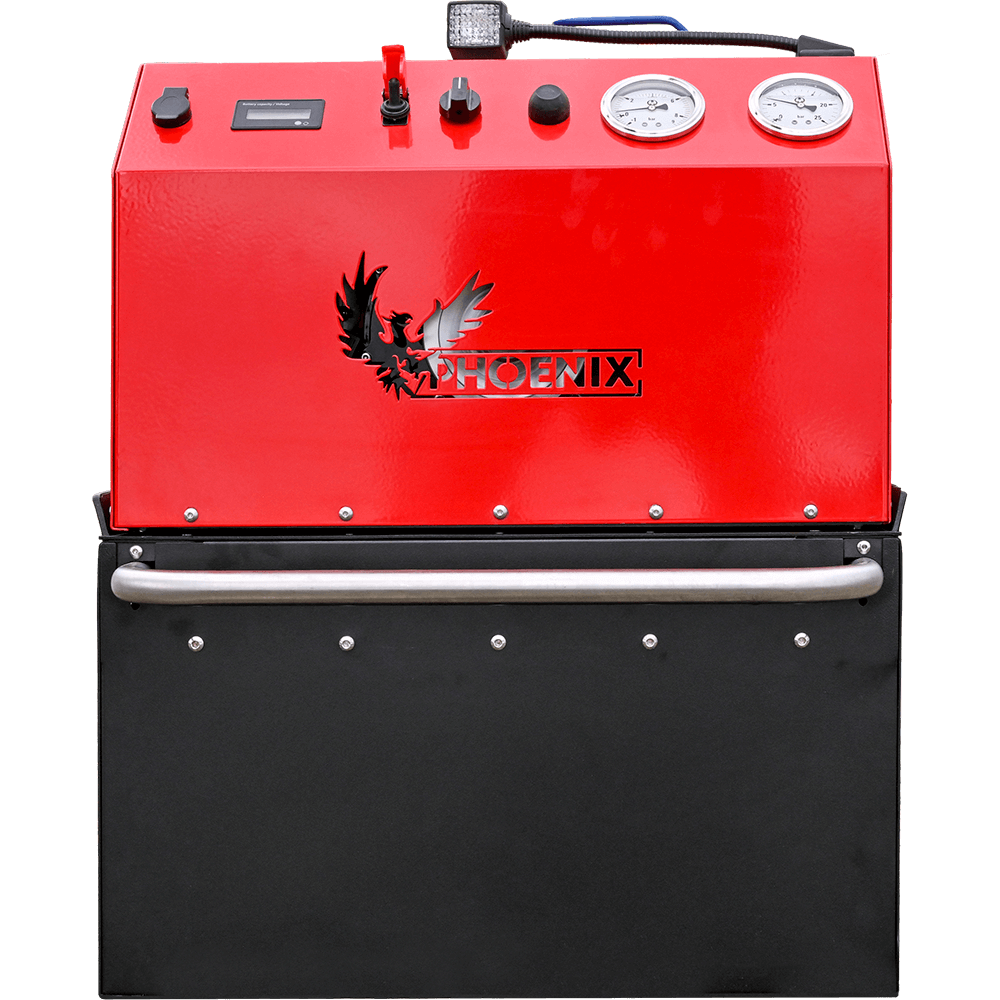

Operating Controls:
On/OFF Switch
Rotary Speed Control
Battery % Charge meter
Push button primer switch
12V Output socket
Pump Controls:
Discharge ball valve
Pressure Gauge
Compound Gauge
Lighting:
Flexible night lighting
Average Performance
| Pressure | Discharge Rate | |||
|---|---|---|---|---|
| Bar | PSI | L/M | IMP GPM. | US GPM |
| 3.45 | 50 | 375 | 82 | 99 |
| 5.17 | 75 | 370 | 81 | 97 |
| 6.9 | 100 | 300 | 66 | 79 |
| 10.3 | 150 | 246 | 54 | 65 |
| 13.80 | 200 | 197 | 43 | 38 |
| 17.20 | 250 | 144 | 31 | 38 |
| 20.00 | 300 | 75 | 16 | 20 |
